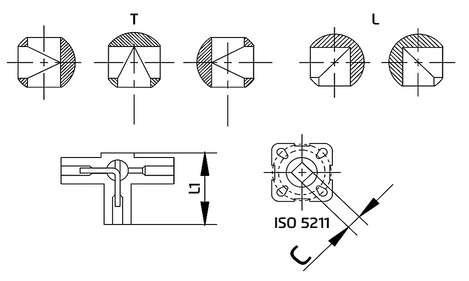

site.urun_teknik_cizim
Ball Valves

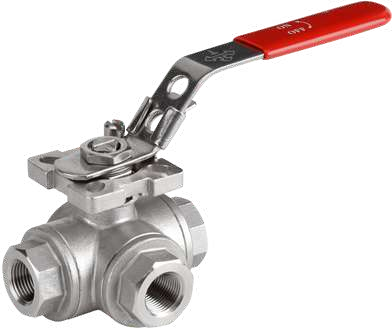

Stainless Steel Threaded 3 Way Ball Valve
site.urun_kaynak
Metroend-Urun-Katalogu.pdf · site.urun_basili_sayfa
22
(PDF 25)
What it does
Ball Valves
A ball valve opens and closes by a quarter-turn (90°) rotation of a ball with a bore through its centre. In the fully open position the bore aligns with the pipe cross-section, so pressure drop is very low and flow is virtually unobstructed. Ball valves are common on lines that require fast on/off operation, frequent cycling and tight shut-off; they are not suited to throttling, as partial opening wears the seat rapidly. The two-piece body is an economical and compact solution, while the three-piece body allows maintenance without removing the valve from the line. Three-way models divert or mix the flow.
This is a general description of the product type; it has no counterpart in the source catalog and is awaiting company approval. The verified technical values for this product are only in the data plate above and in the dimension table.
Where it is used
Application areas
- 01 Chemical - Petrochemical
- 02 Water - Wastewater
- 03 Heating - Cooling Systems
- 04 Maritime Applications
- 05 Mining Applications
- 06 Power Stations
Source: the “Application Areas” list on this product's catalog page.
site.urun_olculer
site.urun_olcu_tablosu
13 site.urun_satir × 6 site.urun_kolon
site.urun_yatay_kaydirin

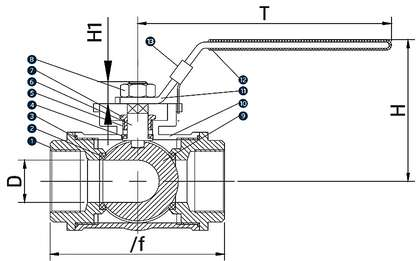

| DIN2999 | kolon_2 * | kolon_3 * | kolon_4 * | PN63 | kolon_6 * |
|---|---|---|---|---|---|
| 1 | KEP | CAP | AISI 304 / AISI316 | ||
| 2 | SİT | SEAT | PTFE | ||
| 3 | CONTA | JOINT GASKET | PTFE | ||
| 4 | SIKIŞTIRMA PULU | THRUST WASHER | PTFE | ||
| 5 | SALMASTRA | PACKING | PTFE | ||
| 6 | MİL | STEM | AISI 304 / AISI316 | ||
| 7 | GLEN | GLAND | AISI 201 / AISI 304 | ||
| 8 | SOMUN | NUT | AISI 201 / AISI 304 | ||
| 9 | KÜRE | BALL | AISI 304 / AISI316 | ||
| 10 | GÖVDE | BODY | AISI 304 / AISI316 | ||
| 11 | KOL | HANDLE | AISI 201 / AISI 304 | ||
| 12 | KOL KAPLAMASI | HANDLE COVER | PVC | ||
| 13 | KİLİT | LOCK | AISI 201 / AISI 304 |
* site.urun_kolon_notu
site.urun_malzeme
site.urun_malzeme_ozellikleri
| site.urun_mat_no | site.urun_mat_parca_adi | site.urun_mat_part_name | site.urun_malzeme |
|---|---|---|---|
| 1 | KEP | CAP | AISI 304 / |
| 2 | SİT | SEAT | PTFE |
| 3 | CONTA | JOINT GASKET | PTFE |
| 4 | SIKIŞTIRMA PULU | THRUST WASHER | PTFE |
| 5 | SALMASTRA | PACKING | PTFE |
| 6 | MİL | STEM | AISI 304 / |
| 7 | GLEN | GLAND | AISI 201 / AISI |
| 8 | SOMUN | NUT | AISI 201 / AISI |
| 9 | KÜRE | BALL | AISI 304 / |
| 10 | GÖVDE | BODY | AISI 304 / |
| 11 | KOL | HANDLE | AISI 201 / AISI |
| 12 | KOL KAPLAMASI | HANDLE COVER | PVC |
| 13 | KİLİT | LOCK | AISI 201 / AISI |
