Ball Valves

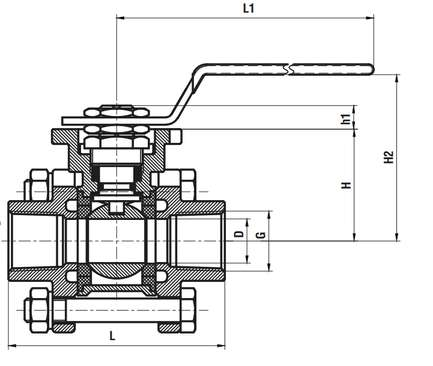

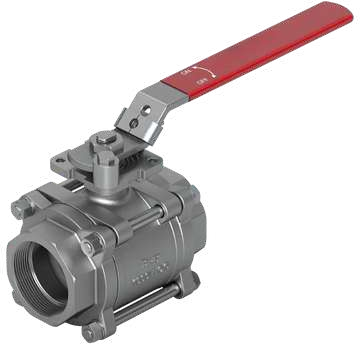

Stainless Steel 3 Piece Threaded Ball Valve
site.urun_kaynak
Metroend-Urun-Katalogu.pdf · site.urun_basili_sayfa
24
(PDF 27)
What it does
Ball Valves
A ball valve opens and closes by a quarter-turn (90°) rotation of a ball with a bore through its centre. In the fully open position the bore aligns with the pipe cross-section, so pressure drop is very low and flow is virtually unobstructed. Ball valves are common on lines that require fast on/off operation, frequent cycling and tight shut-off; they are not suited to throttling, as partial opening wears the seat rapidly. The two-piece body is an economical and compact solution, while the three-piece body allows maintenance without removing the valve from the line. Three-way models divert or mix the flow.
This is a general description of the product type; it has no counterpart in the source catalog and is awaiting company approval. The verified technical values for this product are only in the data plate above and in the dimension table.
Where it is used
Application areas
- 01 Chemical - Petrochemical
- 02 Water - Wastewater
- 03 Heating - Cooling Systems
- 04 Maritime Applications
- 05 Mining Applications
- 06 Power Stations
Source: the “Application Areas” list on this product's catalog page.
site.urun_olculer
site.urun_olcu_tablosu
14 site.urun_satir × 6 site.urun_kolon
site.urun_yatay_kaydirin
| DIN2999 BSPP | kolon_2 * | kolon_3 * | kolon_4 * | kolon_5 * | PN63 |
|---|---|---|---|---|---|
| 1 | GÖVDE | BODY | AISI 316 | ||
| 2 | KEP | CAP | AISI 316 | ||
| 3 | PUL | BOLT WASHER | AISI 304 | ||
| 4 | SOMUN | HEX NUT | AISI 304 | ||
| 5 | CİVATA | BOLT | AISI 304 | ||
| 6 | SİT | SEAT | PTFE | ||
| 7 | KÜRE | BALL | AISI 316 | ||
| 8 | MİL | STEM | AISI 316 | ||
| 9 | SIKIŞTIRMA PULU | THRUST WASHER | PTFE | ||
| 10 | O-RING | O-RING | VITON | ||
| 11 | SALMASTRA | PACKING | PTFE | ||
| 12 | GLEN | GLAND | AISI 304 | ||
| 13 | SOMUN | NUT | AISI 304 | ||
| 14 | KOL | HANDLE | AISI 304 |
* site.urun_kolon_notu
site.urun_malzeme
site.urun_malzeme_ozellikleri
| site.urun_mat_no | site.urun_mat_parca_adi | site.urun_mat_part_name | site.urun_malzeme |
|---|---|---|---|
| 1 | GÖVDE | BODY | AISI 316 |
| 2 | KEP | CAP | AISI 316 |
| 3 | PUL | BOLT WASHER | AISI 304 |
| 4 | SOMUN | HEX NUT | AISI 304 |
| 5 | CİVATA | BOLT | AISI 304 |
| 6 | SİT | SEAT | PTFE |
| 7 | KÜRE | BALL | AISI 316 |
| 8 | MİL | STEM | AISI 316 |
| 9 | SIKIŞTIRMA PULU | THRUST WASHER | PTFE |
| 10 | O-RING | O-RING | VITON |
| 11 | SALMASTRA | PACKING | PTFE |
| 12 | GLEN | GLAND | AISI 304 |
| 13 | SOMUN | NUT | AISI 304 |
| 14 | KOL | HANDLE | AISI 304 |
