Gimbal Type Expansion Joints

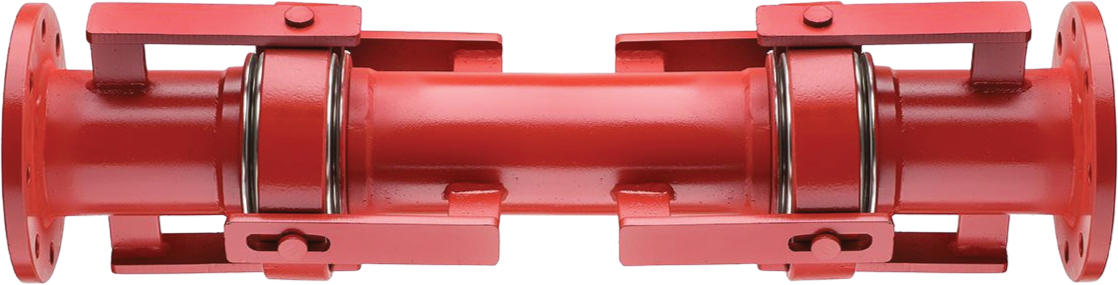

GIMBAL TYPE FLANGED EXPANSION JOINTS

Name: GIMBAL TYPE FLANGED EXPANSION JOINTS
Brand: Metroend
SKU: MTE-610

MTE-610

Bağlantı Rotary Flanged - Döner Flanşlı

Tasarım standardı EN 13445, EN 13480, EN 14917; ASME VIII, div.I, ASME B31.3; ASME B31.1, EJMA

Çalışma basıncı PN16 (Optional / Opsiyonel; PN25, PN40)

Çalışma sıcaklığı -80/+427ºC (Optional / Opsiyonel; -80/+1100ºC)

Nominal çap DN 25 (1") - DN 5000 (200")

Körük malzemesi AISI 304 Stainless Steel - Paslanmaz Çelik (Optional / Opsiyonel; AISI 316L/316Ti/321)

Bağlantı malzemesi ST37.2 Carbon Steel - Karbon Çelik (Optional / Opsiyonel; AISI 316L/316Ti/321)

Get a quote on WhatsApp Download catalog

site.urun_kaynak
Metroend-Kompansator-Katalogu.pdf · site.urun_basili_sayfa 30 (PDF 30)

What it does

Gimbal Type Expansion Joints

Kardan-type articulated seismic compensators are safety devices that dampen large triaxial (X, Y, Z) angular and lateral movements caused by earthquakes, ground subsidence, and expansion joints. Their double-bellows, articulated design absorbs the axial thrust generated by fluid pressure within the unit itself, preventing the transfer of load to fixed supports. With their ability to flex in all directions, these products eliminate the risk of pipe line fractures; they are used as critical safety components in fire protection systems, gas installations, and industrial building transitions in seismic zones.

This text is taken from the company's printed catalog — Metroend-Kompansator-Katalogu.pdf s.29. It applies to the entire product family.

site.urun_olculer

site.urun_olcu_tablosu

12 site.urun_satir × 23 site.urun_kolon

MTE-610-100 MTE-610-200 MTE-610-300 MTE-610-400

GIMBAL TYPE FLANGED EXPANSION JOINTS — site.urun_olcu_tablosu
Size / Ölçü	kolon_2 *	Ødi	H	ØD	Øk Ød4f	b	Ød2xn	±X	±Y ±Z	L	kg	±Y	±Z	L	kg	±Y	±Z	L	kg	±Y	±Z	L kg
DN25		38	145	115 85	68	2 16	Ø14x4	50	50 50	720	6,50		100 100	920	7,00	150	150	1120	7,50		200200 1320	7,90
DN32		42,4	145	140 100	78	2 16	Ø18x4	50	50 50	720	7,90		100 100	920	8,40	150	150	1120	8,90		200200 1320	9,40
DN40		48,3	145	150 110	88	3 16	Ø18x4	50	50 50	720	8,90		100 100	920	9,50	150	150	1120	10,10		200200 1320	10,70
DN50		60,3	170	165 125		102 3 18	Ø18x4	50	50 50	800		12,80 100 100		1000	13,70	150	150	1200			14,50 200200 1420	15,40
DN65		76,1	200	185 145		122 3 18	Ø18x8	50	50 50	800		18,00 100 100		1000	19,10	150	150			1250 20,50 200200 1500		21,80
DN80		88,9	215		200 160 138 3 20		Ø18x8	50	50 50	830		21,30 100 100		1030	22,70	150	150	1270			24,20 200200 1500	25,90
DN100		114,3		260 220 180		158 3 20	Ø18x8	50	50 50	850		27,80 100 100		1050	30,80 150		150			1300 33,30 200200 1550		36,30
DN125		139,7		285 250 210		188 3 22	Ø18x8	50	50 50	980		40,00100 100		1180	42,30 150		150			1480 46,50 200200 1780		50,80
DN150		168,3		350 285 240 212 3 22			Ø22x8	50	50 50	980		57,80 100 100		1180	61,50	150	150			1700 67,00 200200 1780		72,90
DN200		219,1		440 340 295 268 3 24			Ø22x12	50	50 50	1140		96,60 100 100			1340 103,30 150		150				1700 115,50 200200 2050 125,50
DN250		273		560 405 355 320 3 26			Ø26x12	50	50 50	1140		140,10 100 100			1340 148,50 150		150				1700 163,70200200 2100 176,40
	DN300 323,9			620 460 410 378 4 28			Ø26x12	50			50 50 1200 184,20100 100				1400 195,50 150		150				1760 215,80200200 2160 235,00

* site.urun_kolon_notu

site.urun_malzeme

site.urun_malzeme_ozellikleri

site.urun_mat_no	site.urun_mat_parca_adi	site.urun_mat_part_name	site.urun_mat_adet	site.urun_malzeme
1	Bellow / Körük	Bellow / Körük	2	AISI 304/321
2	Band / Bant	Band / Bant	4	AISI 304/321
3	Intermediate Pipe / Ara Boru	Intermediate Pipe / Ara Boru	1	St. 37.2
4	Butt Weld / Kaynak Boyun	Butt Weld / Kaynak Boyun	2	St. 37.2
5	Flange / Flanş	Flange / Flanş	2	St. 37.2
6	Gimbal / Mafsal	Gimbal / Mafsal	2	St. 37.2
7	Collar / Yaka	Collar / Yaka	1	St. 37.2
