Check Valves

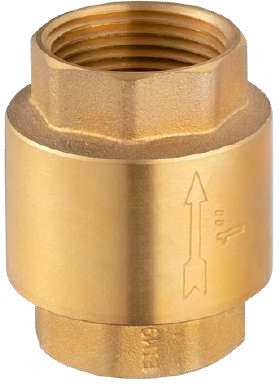

Brass Threaded Spring Loaded Vertical Check Valve
site.urun_kaynak
Metroend-Urun-Katalogu.pdf · site.urun_basili_sayfa
66
(PDF 69)
What it does
Check Valves
A check valve is an automatic safety component that allows fluid to pass in one direction only and closes off reverse flow by itself. It requires no external actuation: closing occurs mechanically when flow stops and back pressure builds up. Check valves are used to prevent backflow and water hammer at pump outlets, to prevent reverse flow on boiler feed lines, and to isolate branches on lines fed from more than one source. Spring-loaded types permit both vertical and horizontal installation, swing types operate with low pressure drop, and dual-plate and disc types are preferred where a short face-to-face dimension is required.
This is a general description of the product type; it has no counterpart in the source catalog and is awaiting company approval. The verified technical values for this product are only in the data plate above and in the dimension table.
Where it is used
Application areas
- 01 Chemical - Petrochemical
- 02 Water - Wastewater
- 03 Heating - Cooling Systems
- 04 Maritime Applications
- 05 Mining Applications
- 06 Power Stations
Source: the “Application Areas” list on this product's catalog page.
site.urun_olculer
site.urun_olcu_tablosu
5 site.urun_satir × 5 site.urun_kolon
site.urun_yatay_kaydirin
| kolon_1 * | DIN2999 | kolon_3 * | kolon_4 * | PN16 |
|---|---|---|---|---|
| 1 | GÖVDE | BODY | MS58 | |
| 2 | KAPAK | BONNET | MS58 | |
| 3 | KLAPE | DISC | POLYMER PLASTIC | |
| 4 | CONTA | GASKET | NBR | |
| 5 | YAY | SPRING | AISI302 |
* site.urun_kolon_notu
site.urun_malzeme
site.urun_malzeme_ozellikleri

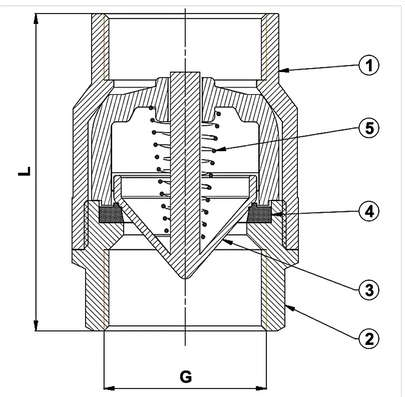

| site.urun_mat_no | site.urun_mat_parca_adi | site.urun_mat_part_name | site.urun_malzeme |
|---|---|---|---|
| 1 | GÖVDE | BODY | MS58 |
| 2 | KAPAK | BONNET | MS58 |
| 3 | KLAPE | DISC | POLYMER PLASTIC |
| 4 | CONTA | GASKET | NBR |
| 5 | YAY | SPRING | AISI302 |
