Air Vent Pipe Head

Name: Air Vent Pipe Head
Brand: Metroend

Product code pending

Get a quote on WhatsApp Download catalog

site.urun_kaynak
Metroend-Urun-Katalogu.pdf · site.urun_basili_sayfa 110 (PDF 109)

What it does

Marine Equipment

Marine equipment covers the fittings used in the fuel, bilge, ballast, cooling and fire-fighting circuits of vessels and shore facilities. Saltwater corrosion, continuous vibration and limited maintenance opportunity are decisive for these products, and the material and sealing selection is made accordingly. In applications requiring classification society approval, the product must be supplied together with the relevant certificate.

This is a general description of the product type; it has no counterpart in the source catalog and is awaiting company approval. The verified technical values for this product are only in the data plate above and in the dimension table.

Where it is used

Application areas

01 Maritime Applications
02 Oil Tanks
03 Fuel Tanks
04 Ballast Tanks
05 Fresh and Waste Water Tanks

Source: the “Application Areas” list on this product's catalog page.

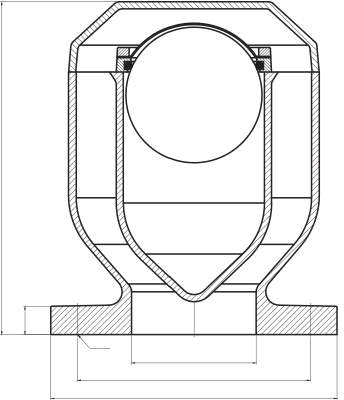

site.urun_olculer

site.urun_olcu_tablosu

11 site.urun_satir × 15 site.urun_kolon

Air Vent Pipe Head — site.urun_olcu_tablosu
DN	ØD	b	H	PN6 Øk	PN6 Ødxn	PN6 Øk	PN10 Ødxn	PN10 Øk	PN16 Ødxn	PN16 Øk	5K Ødxn	Øk	10K Ødxn	KG
50	165	20	60	110	14x4	125	18x4	125	18x4	105	15x4	120	19x4	6
65	185	20	15	130	14x4	145	18x4	145	18x4	130	15x4	140	19x4	8
80	200	20	218	150	18x4	160	18x8	160	18x8	145	19x4	150	19x8	10
100	220	22	260	170	18x4	180	18x8	180	18x8	165	19x8	175	19x8	14
125	250	22	305	200	18x8	210	18x8	210	18x8	200	19x8	210	19x8	20
150	285	24	365	225	18x8	240	22x8	240	22x8	230	19x8	240	23x8	28
200	340	26	460	280	18x8	295	22x8	295	22x12	280	23x8	290	23x12	48
250	405	28	570	335	18x12	350	22x12	355	26x12	345	23x12	355	25x12	78
300	460	28	730	395	22x12	400	22x12	410	26x12	390	23x12	400	25x16	143
350	520	30	815	445	22x12	460	22x16	470	26x12	435	25x12	445	25x16	195
400	580	32	846	495	22x16	515	22x16	525	30x16	495	25x16	510	27x16	224

site.urun_malzeme

site.urun_malzeme_ozellikleri

site.urun_mat_no	site.urun_mat_parca_adi	site.urun_mat_part_name	site.urun_malzeme
1	GÖVDE	BODY	GG25 /
2	TOP	BALL	P.E.
3	O-RING FLANŞI	O-RING FLANGE	RG5
4	O-RING	O-RING	NBR
5	TEL	STRAINER	AISI316
6	TEL BASKI FLANŞI	STRAINER FLANGE	RG5
7	CIVATA	BOLT	AISI316
8	KAPAK	BONNET	GG25 /
