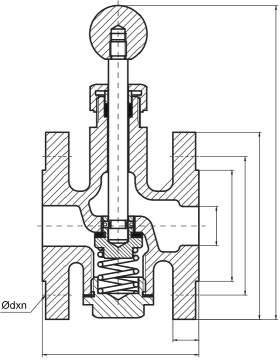

Technical drawing
Drain Valves
Drain Valve
- Working pressure PN10
- Working temperature -10°C / +120°C
- Connection type EN1092-2
Documents
Product catalog page
PDF 1 page(s) 304 KB EN 30.07.2026
Source
Metroend-Urun-Katalogu.pdf · printed page
90
(PDF 93)
What it does
Drain Valves
A drain valve is used to remove water, sediment and sludge that collect at the bottom of tanks, boilers and pipelines. Because solid particles carried along during draining can erode the sealing face, the closing surface and body geometry of these valves are selected to withstand sediment. Self-closing models prevent the valve from being left open when draining is finished.
This is a general description of the product type; it has no counterpart in the source catalog and is awaiting company approval. The verified technical values for this product are only in the data plate above and in the dimension table.
Where it is used
Application areas
- 01 Maritime Applications
- 02 Water - Wastewater
Source: the “Application Areas” list on this product's catalog page.
Dimensions
Dimension table
3 rows × 9 columns
← scroll horizontally →
| DN | ØD | Øk | Øg | L | Øb | H | Ødxn | KG |
|---|---|---|---|---|---|---|---|---|
| 20 | 105 | 75 | 58 | 170 | 16 | 195 | 14x4 | 4,20 |
| 25 | 115 | 85 | 68 | 180 | 16 | 195 | 14x4 | 4,80 |
| 25 (SINGLE) | 115 | 85 | 68 | 95 | 16 | 195 | 14x4 | 3,5 |
Material
Material specifications
| No | Part name (TR) | Part name (EN) | Material |
|---|---|---|---|
| 1 | GÖVDE | BODY | GGG40 |
| 2 | MİL | STEM | BRASS |
| 3 | KLAPE | DISC | BRASS |
| 4 | YAY | SPRING | STEEL |
| 5 | CONTA | GASKET | KLINGRIT |
| 6 | SALMASTRA | PACKING | SILICON |
| 7 | TOPUZ | NOB | BAKALITE |
| 8 | HENDIL | HANDWHEEL | GG25 |
