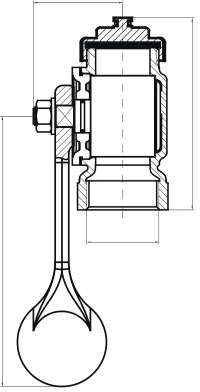

Technical drawing
Sounding Cock Valves
Sounding Cock Valve
- Working pressure PN2,5
- Working temperature -10°C / +120°C
- Connection type DIN2999
Documents
Product catalog page
PDF 1 page(s) 264 KB EN 30.07.2026
Source
Metroend-Urun-Katalogu.pdf · printed page
92
(PDF 95)
What it does
Sounding Cock Valves
A sounding cock is the valve at the top opening of the sounding pipe through which the liquid level in a tank is measured with a sounding tape. Its weighted cap closes by itself when the measurement is finished, preventing tank vapours from entering the space and flame from reaching the tank in the event of fire. Periodic verification that the cap closes by itself is a safety requirement.
This is a general description of the product type; it has no counterpart in the source catalog and is awaiting company approval. The verified technical values for this product are only in the data plate above and in the dimension table.
Where it is used
Application areas
- 01 Maritime Applications
- 02 Water - Wastewater
Source: the “Application Areas” list on this product's catalog page.
Dimensions
Dimension table
2 rows × 6 columns
← scroll horizontally →
| DN | R | L | L1 | H | KG |
|---|---|---|---|---|---|
| 40 | 1 1/2" | 130 | 180 | 60 | 3 |
| 50 | 2" | 140 | 180 | 60 | 3 |
Material
Material specifications
| No | Part name (TR) | Part name (EN) | Material |
|---|---|---|---|
| 1 | GÖVDE | BODY | RG5 |
| 2 | SİLİNDİR | CYLINDER | RG5 |
| 3 | O-RING | O-RING | NBR |
| 4 | KAPAK | BONNET | RG5 |
| 5 | KOL | LEVER | GGG40 |
| 6 | TAHLİYE NOZULU | NOZZLE | BRASS |
| 7 | CONTA | GASKET | NBR |
