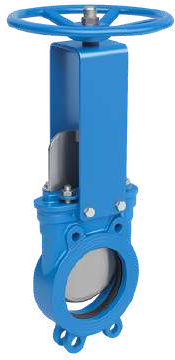

Knife Gate Valve

Name: Knife Gate Valve
Brand: Metroend

Product code pending

Bağlantı EN1092-2

Çalışma basıncı PN16

Çalışma sıcaklığı -10°C / +80°C

Get a quote on WhatsApp Download catalog

site.urun_kaynak
Metroend-Urun-Katalogu.pdf · site.urun_basili_sayfa 46 (PDF 49)

What it does

Gate Valves

A gate valve works on the principle of a gate moving perpendicular to the flow direction to close the line completely. In the fully open position the gate retracts clear of the flow cross-section, so pressure drop is very low; this makes gate valves the preferred choice for main-line and isolation duties that stay open and are closed only for full shut-off. They are not suitable for throttling: at partial opening the gate vibrates and the seat face wears. Resilient-seated (soft-sealing) models provide tight shut-off on water and wastewater lines. Models with a position indicator allow the gate position to be observed externally. Knife gate types are designed to cut through deposits as they close, for slurry and pulp lines carrying solid particles.

This is a general description of the product type; it has no counterpart in the source catalog and is awaiting company approval. The verified technical values for this product are only in the data plate above and in the dimension table.

Where it is used

Application areas

01 Chemical - Petrochemical
02 Water - Wastewater
03 Heating - Cooling Systems
04 Maritime Applications
05 Mining Applications
06 Power Stations

Source: the “Application Areas” list on this product's catalog page.

site.urun_olculer

site.urun_olcu_tablosu

12 site.urun_satir × 11 site.urun_kolon

Knife Gate Valve — site.urun_olcu_tablosu
DN	A	H	R	B	kxn	kolon_7 *	kolon_8 *	kolon_9 *	kolon_10 *	KG
50	43	320	180	130	125x4	M16	2	0	2	7,5
65	46	340	180	150	145x4	M16	2	0	2	8,5
80	46	370	220	176	160x8	M16	2	4	2	11
100	52	410	240	192	180x8	M16	2	4	2	13
125	56	460	240	221	210x8	M16	2	4	2	17
150	56	510	280	225	240x8	M20	2	4	2	22
200	60	590	300	283	295x8	M20	2	4	2	33
250	68	700	340	350	350x12	M20	4	6	2	48
300	78	803	340	402	400x12	M20	4	6	2	60
350	92	899	400	454	460x16	M20	6	8	2	83
400	102	1020	450	500	515x16	M24	6	8	2	109
450	114	1100	530	564	615x20	M24	8	10	2	145

* site.urun_kolon_notu

site.urun_malzeme

site.urun_malzeme_ozellikleri

site.urun_mat_no	site.urun_mat_parca_adi	site.urun_mat_part_name	site.urun_malzeme
1	GÖVDE	BODY	GGG40 / WCB /
2	SÜRGÜ	GATE	2Cr13 / AISI304 /
3	MİL SOMUNU	STEM NUT	BRASS
4	MİL	STEM	2Cr13 / AISI304 /
5	SALMASTRA	PACKING	PTFE
6	GLEN	GLAND	WCB / AISI304 /
7	RULMAN	BEARING	GCr9
8	HENDIL	HANDWHEEL	MALLEABLE
