Globe Valve Straight Type

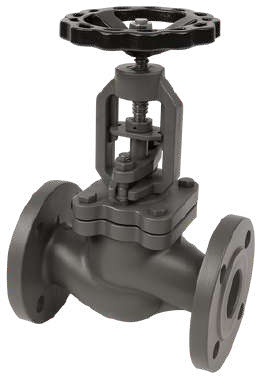

Name: Globe Valve Straight Type
Brand: Metroend

Product code pending

Bağlantı DIN1092-2

Çalışma basıncı PN16/PN25/PN40

Çalışma sıcaklığı -10°C / +220°C

Get a quote on WhatsApp Download catalog

site.urun_kaynak
Metroend-Urun-Katalogu.pdf · site.urun_basili_sayfa 5 (PDF 8)

What it does

Globe Valves

A globe valve routes the fluid through an S-shaped path inside the body and closes by the perpendicular movement of the disc onto the seat. This arrangement allows gradual adjustment of flow rate, so the valve serves not only for on/off duty but also for throttling. Because the sealing surface is perpendicular to the flow, tight shut-off is easier to achieve and seat wear on frequently adjusted lines is lower than with gate valves. The straight body suits inline runs, while the angle type removes the need for an additional elbow where the line turns 90°. Bellows-sealed models are preferred on steam and heat-transfer fluid lines where stem packing leakage is not acceptable.

This is a general description of the product type; it has no counterpart in the source catalog and is awaiting company approval. The verified technical values for this product are only in the data plate above and in the dimension table.

Where it is used

Application areas

01 Chemical - Petrochemical
02 Water - Wastewater
03 Heating - Cooling Systems
04 Maritime Applications
05 Mining Applications
06 Power Stations

Source: the “Application Areas” list on this product's catalog page.

site.urun_olculer

site.urun_olcu_tablosu

16 site.urun_satir × 10 site.urun_kolon

Globe Valve Straight Type — site.urun_olcu_tablosu
DN	ØD	Øk	Øg	L	b	ØR	H	Ødxn	KG
15	95	65	45	130	14	110	202	14x4	4
20	105	75	58	150	16	110	202	14x4	4
25	115	85	68	160	16	110	211	14x4	5
32	140	100	78	180	18	140	216	18x4	7
40	150	110	88	200	18	140	249	18x4	11
50	165	125	102	230	20	160	254	18x4	13
65	185	145	122	290	20	160	271	18x4	18
80	200	160	138	310	20	200	311	18x8	25
100	220	180	158	350	24	220	344	18x8	35
125	250	210	188	400	26	250	420	18x8	55
150	285	240	212	480	26	300	498	22x8	78
200	340	295	268	600	30	400	550	22x12	140
250	405	355	320	730	32	500	585	26x12	215
300	460	410	370	850	32	500	640	26x12	250
350	520	470	430	980	36	500	875	26x16	385
400	580	525	482	1100	38	500	955	30x16	410

site.urun_malzeme

site.urun_malzeme_ozellikleri

site.urun_mat_no	site.urun_mat_parca_adi	site.urun_mat_part_name	site.urun_malzeme
1	GÖVDE	BODY	GG25 / GGG40 / GS-C25 /
2			RG5 / RG10 / AISI304 /
3	SİT	SEAT	RG5 / AISI420
4	MİL	STEM	AISI420 / MS58
5	İNDİKATÖR	INDICATOR	ST37
6	KAPAK	BONNET	GG25 / GGG40 / GS-C25 /
7			RG5 / RG10 / AISI304 /
8	KLAPE	DISC	RG5 / AISI420
9	RING	RING	RG5 / AISI420
10	CONTA	GASKET	KLINGERIT / GRAPHITE
11	SALMASTRA	PACKING	GRAPHITE
12	GLEN	GLAND	GG25 / GGG40 / GS-C25 /
13			RG5 / RG10 / AISI304 /
14	SOMUN & PUL	NUT & WASHER	STEEL
15	HENDIL	HANDWHEEL	GG25
