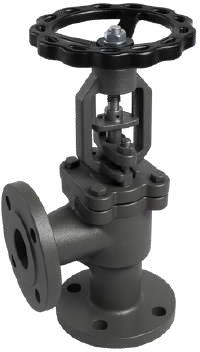

Globe Valve Angle Type

Name: Globe Valve Angle Type
Brand: Metroend

Product code pending

Bağlantı DIN1092-2

Çalışma basıncı PN16/PN25/PN40

Çalışma sıcaklığı -10°C / +220°C

Get a quote on WhatsApp Download catalog

site.urun_kaynak
Metroend-Urun-Katalogu.pdf · site.urun_basili_sayfa 6 (PDF 9)

What it does

Globe Valves

A globe valve routes the fluid through an S-shaped path inside the body and closes by the perpendicular movement of the disc onto the seat. This arrangement allows gradual adjustment of flow rate, so the valve serves not only for on/off duty but also for throttling. Because the sealing surface is perpendicular to the flow, tight shut-off is easier to achieve and seat wear on frequently adjusted lines is lower than with gate valves. The straight body suits inline runs, while the angle type removes the need for an additional elbow where the line turns 90°. Bellows-sealed models are preferred on steam and heat-transfer fluid lines where stem packing leakage is not acceptable.

This is a general description of the product type; it has no counterpart in the source catalog and is awaiting company approval. The verified technical values for this product are only in the data plate above and in the dimension table.

Where it is used

Application areas

01 Chemical - Petrochemical
02 Water - Wastewater
03 Heating - Cooling Systems
04 Maritime Applications
05 Mining Applications
06 Power Stations

Source: the “Application Areas” list on this product's catalog page.

site.urun_olculer

site.urun_olcu_tablosu

16 site.urun_satir × 10 site.urun_kolon

Globe Valve Angle Type — site.urun_olcu_tablosu
DN	ØD	Øk	Øg	L	b	ØR	H	Ødxn	KG
15	95	65	45	90	14	110	184	14x4	4
20	105	75	58	95	16	110	184	14x4	4
25	115	85	68	100	16	110	197	14x4	5
32	140	100	78	105	18	140	200	18x4	7
40	150	110	88	115	18	140	232	18x4	11
50	165	125	102	125	20	160	235	18x4	13
65	185	145	122	145	20	160	248	18x4	18
80	200	160	138	155	20	200	287	18x8	25
100	220	180	158	175	24	220	320	18x8	35
125	250	210	188	200	26	250	340	18x8	55
150	285	240	212	225	26	300	405	22x8	75
200	340	295	268	275	30	400	440	22x12	116
250	405	355	320	325	32	500	510	26x12	170
300	460	410	370	375	32	500	575	26x12	240
350	520	470	430	425	36	500	775	26x16	325
400	580	525	482	475	38	500	840	30x16	400

site.urun_malzeme

site.urun_malzeme_ozellikleri

site.urun_mat_no	site.urun_mat_parca_adi	site.urun_mat_part_name	site.urun_malzeme
1	GÖVDE	BODY	GG25 / GGG40 / GS-C25 / RG5
2			/ RG10 / AISI304 / AISI316
3	KAPAK	BONNET	GG25 / GGG40 / GS-C25 / RG5
4			/ RG10 / AISI304 / AISI316
5	SİT	SEAT	RG5 / AISI420
6	KLAPE	DISC	RG5 / AISI420
7	MİL	STEM	AISI420 / MS58
8	SALMASTRA	PACKING	GRAPHITE
9	CONTA	GASKET	GRAPHITE
10	SAPLAMA	STUD BOLT	STEEL
11	SOMUN	NUT	STEEL
12	HENDIL	HANDWHEEL	GG25
