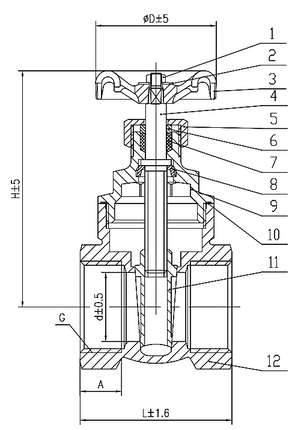

site.urun_teknik_cizim
Gate Valves

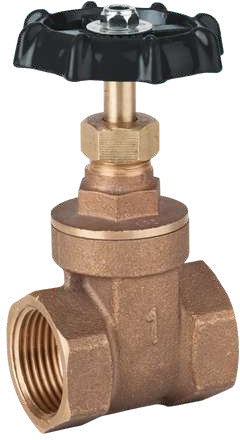

Bronze Threaded Gate Valve
site.urun_kaynak
Metroend-Urun-Katalogu.pdf · site.urun_basili_sayfa
43
(PDF 46)
What it does
Gate Valves
A gate valve works on the principle of a gate moving perpendicular to the flow direction to close the line completely. In the fully open position the gate retracts clear of the flow cross-section, so pressure drop is very low; this makes gate valves the preferred choice for main-line and isolation duties that stay open and are closed only for full shut-off. They are not suitable for throttling: at partial opening the gate vibrates and the seat face wears. Resilient-seated (soft-sealing) models provide tight shut-off on water and wastewater lines. Models with a position indicator allow the gate position to be observed externally. Knife gate types are designed to cut through deposits as they close, for slurry and pulp lines carrying solid particles.
This is a general description of the product type; it has no counterpart in the source catalog and is awaiting company approval. The verified technical values for this product are only in the data plate above and in the dimension table.
Where it is used
Application areas
- 01 Water - Wastewater
- 02 Heating - Cooling Systems
- 03 Maritime Applications
Source: the “Application Areas” list on this product's catalog page.
site.urun_olculer
site.urun_olcu_tablosu
9 site.urun_satir × 5 site.urun_kolon
site.urun_yatay_kaydirin
| kolon_1 * | kolon_2 * | kolon_3 * | kolon_4 * | CAST IRON |
|---|---|---|---|---|
| 4 | MİL | STEM | CW602N | |
| 5 | SALMASTRA SOMUNU | PACKING NUT | CW617N | |
| 6 | RİNG | RING | CW617N | |
| 7 | SALMASTRA | PACKING | PTFE | |
| 8 | MİL BURCU | STEM BUSH | CW602N | |
| 9 | KAPAK | BONNET | CC491K | |
| 10 | CONTA | GASKET | PTFE | |
| 11 | DİSK | DISC | CC491K | |
| 12 | GÖVDE | BODY | CC491K |
* site.urun_kolon_notu
site.urun_malzeme
site.urun_malzeme_ozellikleri
| site.urun_mat_no | site.urun_mat_parca_adi | site.urun_mat_part_name | site.urun_malzeme |
|---|---|---|---|
| 1 | SOMUN | NUT | CW617N |
| 2 | ETİKET | I.D PLATE | ALUMINIUM |
| 3 | HENDIL | HANDWHEEL | ALUMINIUM CAST IRON |
| 4 | MİL | STEM | CW602N |
| 5 | SALMASTRA SOMUNU | PACKING NUT | CW617N |
| 6 | RİNG | RING | CW617N |
| 7 | SALMASTRA | PACKING | PTFE |
| 8 | MİL BURCU | STEM BUSH | CW602N |
| 9 | KAPAK | BONNET | CC491K |
| 10 | CONTA | GASKET | PTFE |
| 11 | DİSK | DISC | CC491K |
| 12 | GÖVDE | BODY | CC491K |
